TILLAGE & PASTURE MANAGEMENT

MD- 3-POINT MEDIUM DUTY DISC HARROW

Avalible in 4', 5' and 6.5' widths

  • Armstrong Ag's 3-Point Medium Duty Disc Harrow has a rigid angle iron and rectangular tube frame
  • Adjustable cutting angles with greasable ball bearings on a 1" square axle
  • 7 1/2" disc spacing
  • Available in Category I - 3-point Hitch, Cat. I - Quick Hitch Compatible
MD - MEDIUM DUTY DISCS
MD - MEDIUM DUTY DISCS.pdf
Adobe Acrobat document [179.9 KB]

HD - 3-POINT HEAVY DUTY DISC HARROW

Available in 5',  6.5', 8' and 9.5' widths .

  • Armstrong Ag's 3-Point Heavy Duty Discs are fully adjustable with quick pull pins
  • Built with heavy channel and square tubing frame that is designed to give years of dependable service
  • Notched disc provides aggressive cutting
  • Sealed bearings on a 1 1/8" square axle, with 7 1/2" disc spacing and cast steel spools
  • Disc Scrapers are available on 6.5', 8' and 9' disc.
HD - HEAVY DUTY DISC
HD - HEAVY DUTY DISCS.pdf
Adobe Acrobat document [228.2 KB]

HD-P PULL TYPE DISC

Avaliable in 6.5, 8' and 9' widths

  • Heavy square tube frame with adjustable gangs
  • Sealed roller bearings, HD-P 2820 has 12 bearings
  • New 15" tires on Ag Rims
  • Comes with 3 X 8 cylinder and hoses
  • Disc scrapers avaliable for all sizes
HD PULL TYPE DISC
HD PULL.pdf
Adobe Acrobat document [115.8 KB]

DHD - 3-POINT SUPER HEAVY DUTY DISC HARROW

Avaliable in 8' and 10' widths.

  • 3-Point Super Heavy Duty Disc Harrow has heavy duty greasable bearings on a 1 1/2" square axle
  • Ductile iron spacers for extreme toughness
  • Easy pin angle adjustments (no tools or cranking)
  • Notched or Smooth blades are 5mm thick X 22" on 9" Centers
  • Available in Category II & III - 3-point Hitch
  • HP Rating - 80-150 HP
  • Optional scrapers and center sweep.
DHD - SUPER HEAVY 3PT. DISCS
DHD - SUPER HEAVY 3PT. DISCS.pdf
Adobe Acrobat document [288.7 KB]

DHDP - HEAVY DUTY (PULL TYPE) DISC HARROW

Available in 8', 10', 12', 13.5' and 15' widths.

  • Heavy Duty Pull Type Disc Harrow has heavy duty greasable bearings on a 1 1/2" square axle
  • Ductile iron spacers for extreme toughness
  • Easy pin angle adjustments (no tools or cranking)
  • Notched or Smooth blades are 5mm thick X 22" on 9" Centers
  • 11L x 15 flotation tires, jack, cylinder & hoses included
  • Optional Scrapers & Center Sweep are available
DHDP - HEAVY DUTY PULL TYPE DISCS
DHDP-HEAVY DUTY PULL TYPE DISC.pdf
Adobe Acrobat document [265.2 KB]

DHO - HEAVY DUTY (PULL TYPE) OFFSET DISC

Available from  6' to 14'  widths.

  • Heavy Duty Pull Type Offset Disc has heavy duty greasable bearings on a 1 1/2" square axle
  • Notched or Smooth 24" X 6MM
  • Blades on 9" Centers
  • Adjustable Hitch for Plow Alignment
  • 11Lx 15" flotation tires, jack, cylinder & hoses included
  • Scrapers Optional
DHO - HEAVY DUTY PULL TYPE OFFSET DISCS.[...]
Adobe Acrobat document [188.3 KB]

ARMADILLO - PASTURE RENOVATOR

  • Pasture Renovator has heavy 4" square tube frame
  • Each shank is shear bolt protected
  • 17" flutted coulters, 3/4" U-Bolts on coulter clamp
  •  New clamp on design 1" U-Bolts on shank clamp
  • ARM3, ARM4, ARM5, ARM6 Available in Category I & II - 3-point Hitch (Clevis Type), Cat. I & II - Quick Hitch Compatible
  • ARM8, ARM10, & ARM12 - Available in Category II & III, 3 Pt. Hitch (Clevis Type)10HP - 15 HP per Shank
ARMADILLO - PASTURE RENOVATOR
ARM - PASTURE RENOVATOR.pdf
Adobe Acrobat document [352.0 KB]

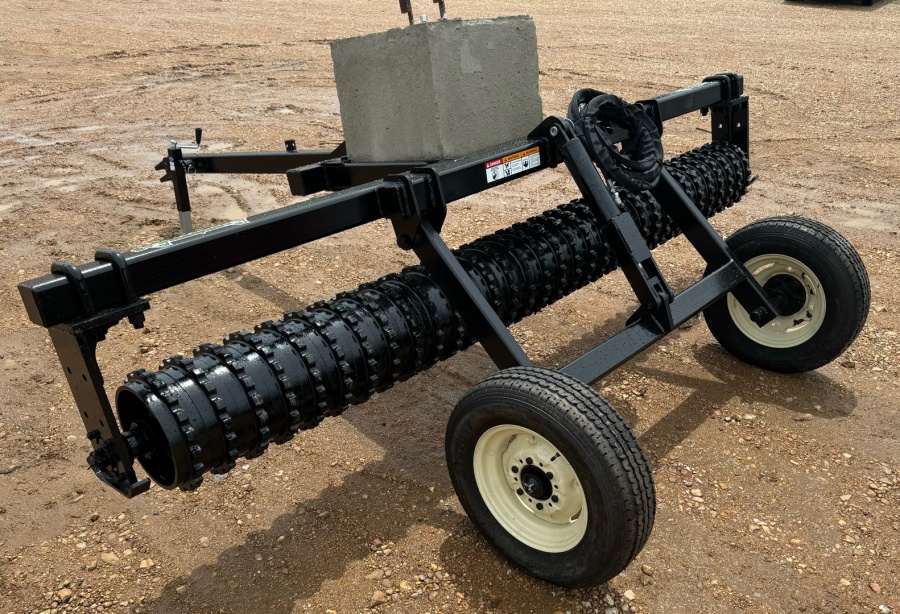

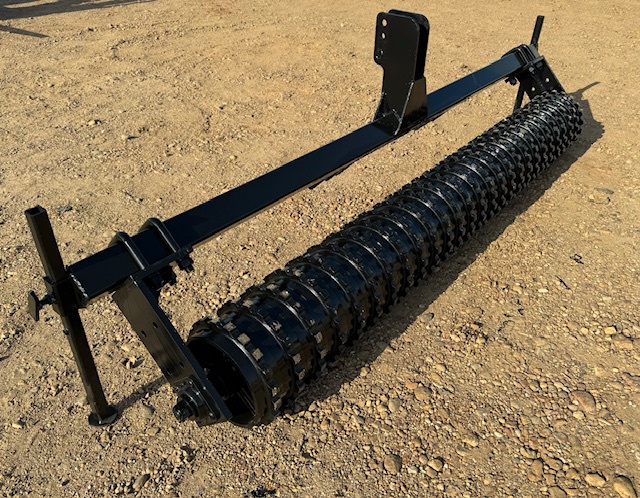

RV - ROLLAVATOR

Available in 6', 8', 10', 12' and 15' widths

  • Armstrong Ag's Rollavator is a rolling aerator with tines that penetrate and shatter compacted soils
  • Sealed greasable bearings with easy adjustable gang arms allow for more aggressive plowing
  • Cement Weight Boxes (860lbs each)  are recommended for greater penetration
  • 6-10 HP per foot and tine spacing - 7 1/2"
  • 3x8 cylinders
  • 3'' axle shaft
  • pull type or 3 point
  • 11L x 15 Tire - 10 ply

CH -CHAIN HARROW

AVAILABLE in 4', 8', 12' and 16'widths

  • Armstrong Ag's Chain Harrows have a flexible 2 way design, front and back pull bars
  • CH mats are 5/8" heat treated round stock, 2 7/8"  pipe
  • Depth - Bar to Bar - approximatley 6 1/2'
  • All pull bars and chain splices are attached with quick links for tangle free operation
  • Complete with pull chain and clevis. Will attach to CHC
CHAIN HARROW AND CHC.pdf
Adobe Acrobat document [396.4 KB]

CHC - CHAIN HARROW CARRIERS

Used on  4', 8', 12'and 16' chain harrows

  • Chain Harrow Carriers are great for arenas or transporting
  • CHC weighs approximately 220 lbs
  •  Cat 1 & 2 combination pins
CHAIN HARROW AND CHC.pdf
Adobe Acrobat document [396.4 KB]

RIDGED HARROW - PULL TYPE

  • Comes in 2 models, the RH12-P and RH20-P
  • Ridged 1/4" wall,  2x4 tubing frame
  • Easily replaceable tines
  • Adjustable tongue height
  • Model RH12-P requires only 1 remote, while model    RH20-P requires 2 remotes

CHISEL PLOW

  • Armstrong Ag's  chisel plow is constructed of 4 inch square tubing.
  • Adjustable spring steel shanks.
  • 22 inch clearence.
  • Available chisel points or 8 inch chisel sweeps.
  • 1 inch u-bolts on shank clamp.
  • Gauge wheels optional.
  • Customize your own by choosing 60, 90, 120 or 150 inch wide frames.
  • Your choice of spacing  and number of shanks.
CHISEL PLOWS WEBSITE.pptx
Microsoft Power Point presentation [386.9 KB]

SDRP - 3-POINT PLASTIC SEEDER

  • 3-Point Plastic Seeder is designed with a high quality plastic UV resistant cone
  • Aluminum housing gearbox
  • Powder coated frame
  • 500lb capacity (Driveline Included)
FD & SDRP - FLIP-OVER DISC & PLASTIC SEEDER
FD SDRP.pdf
Adobe Acrobat document [261.6 KB]
